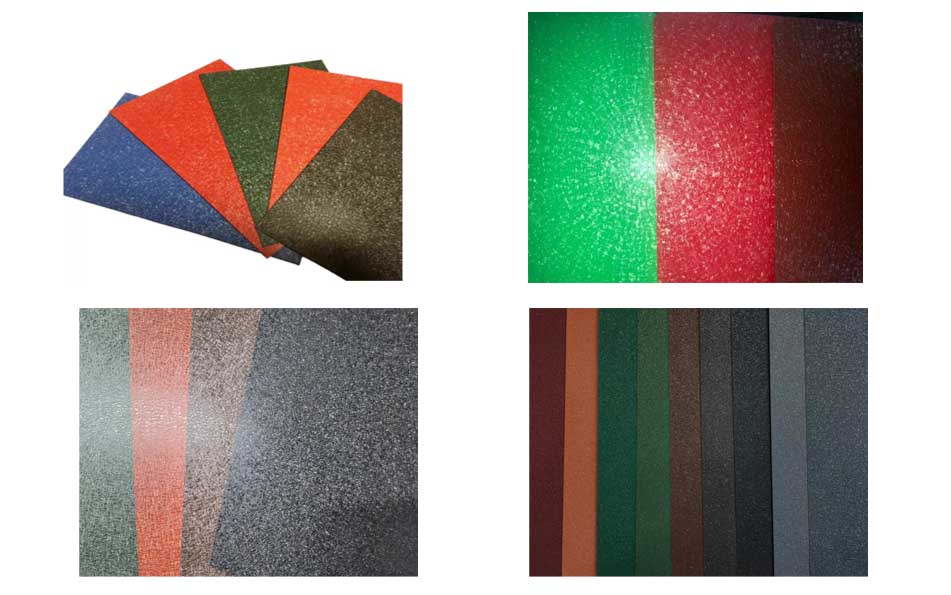

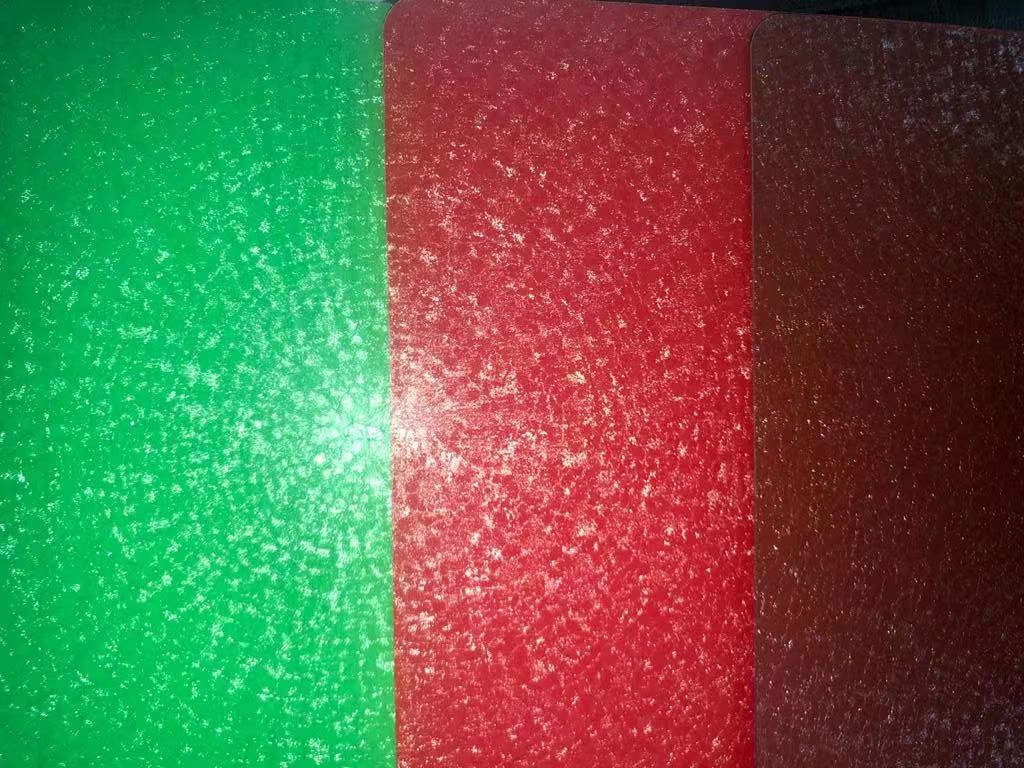

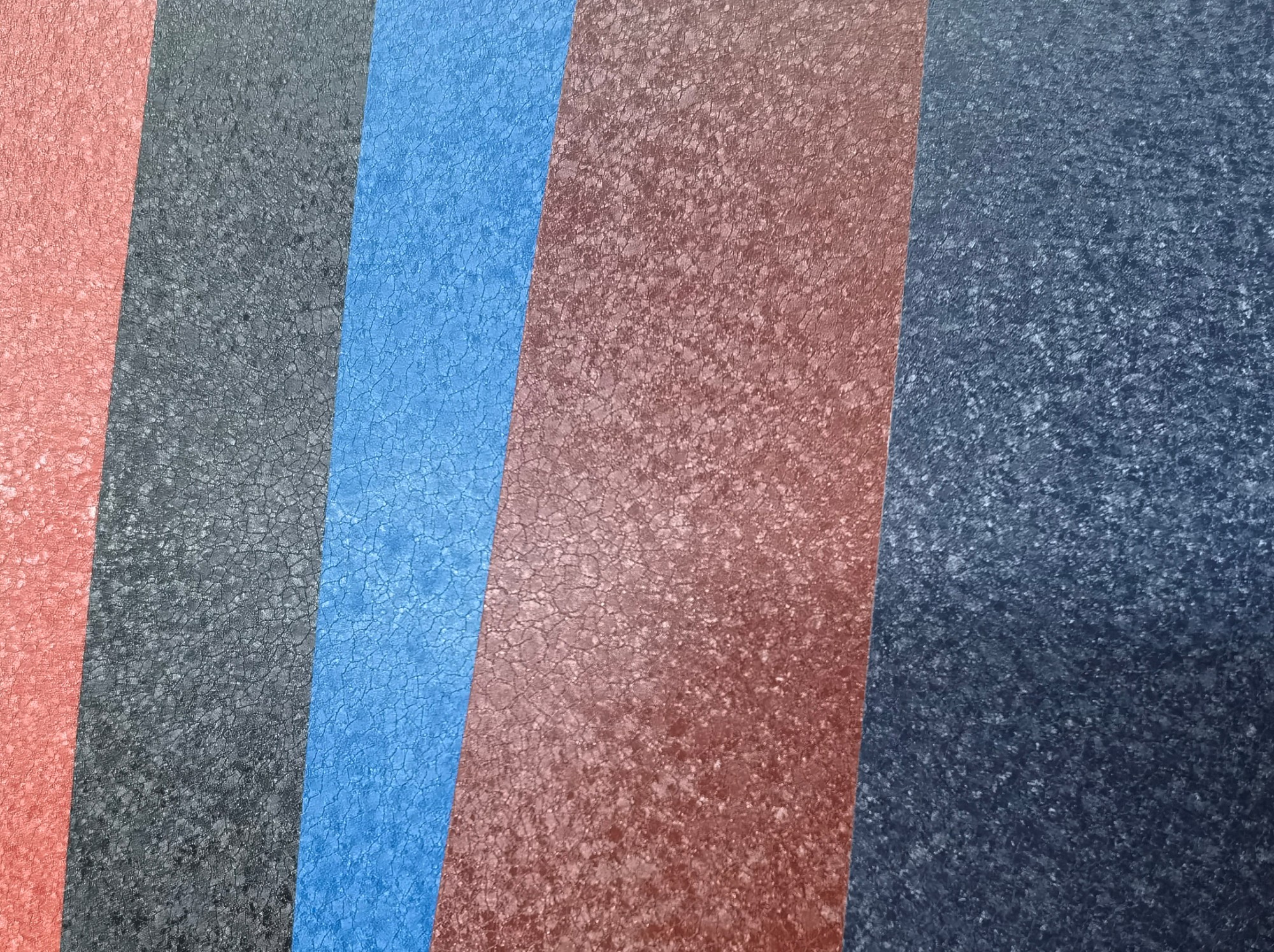

MATT COLOR PREPAINTED STEEL PPGI / WRINKLE COLOR COATED STEEL PPGI

MATT COLOR PREPAINTED STEEL PPGI / WRINKLE COLOR COATED STEEL PPGI

Thickness:0.12-0.2mm

Length:ACCORDING TO CUSTOMER REQUEST

Width:600-1250mm

Coil Weight:3-8 Tons

Description

Basic information

Model NO.	High Quality PPGI PPGL Color Coated Steel Coil	Application	Roofing window frame,Rolling-up door,Shutter,Wall,Building material
Standard	AISI,ASTM,BS,DIN,GB,JIS	Stock	Not Stock
Item	High Quality PPGI PPGL Color Coated Steel Coil	Raw Material	Galvanized Coils, Galvalume Coils
Grade	DX51D SGCC SGHC G550	Surface treatment	Galvanized / Galvalume
Thickness	0.18-2.0mm	Width	Under 1500mm
Coil ID	508mm or 610mm	Coil Weight	3-8tons
Zinc coating	20-275G/M2	Production Capacity	300,000 tons/year
Color	Ral Color	MOQ	25 tons
Packing	Standard Export Package	Transport Package	Standard Export Package
Sample	Free	Trademark	JEC
Origin	Malaysia, Vietnam, South Korea	HS Code	721070
Payment term	30%TT Balance T/T and L/C both ok	Delivery time	15-25days after we got T/T payment

Product Description

Name	Color coated steel coil
Type of substrate	Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminium
Thickness	0.18-2.0mm
Width	Under 1500mm
Top Paint	10-25 micron(Normal:10-12mic)
Back paint	5-12 micron(Normal:5-7mic)
Zinc coating	20-275G/M2
Coil Weight	3-8tons
Coil ID	508mm or 610mm
Grade	DX51D SGCC SGHC G550

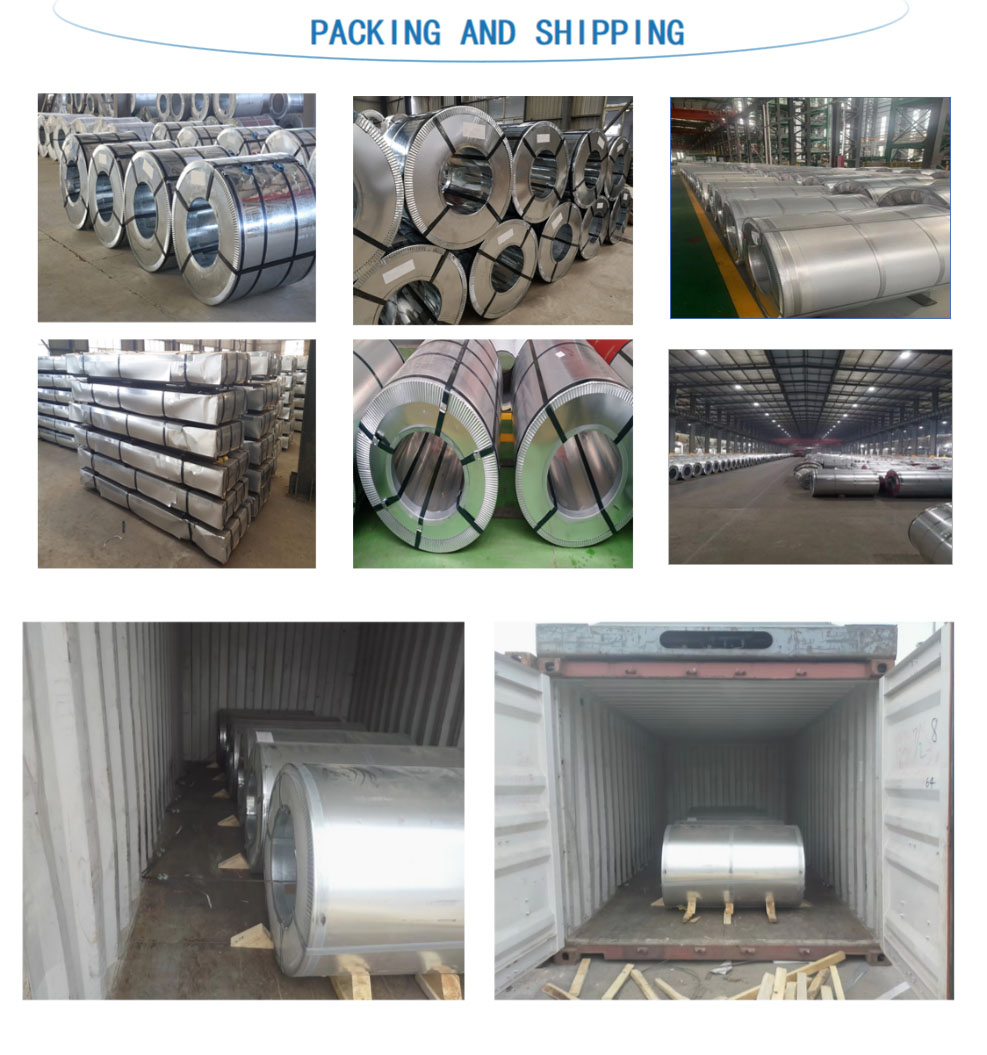

Packing	Seaworthy package plastic film+waterproof paper+steel plate+packing steel

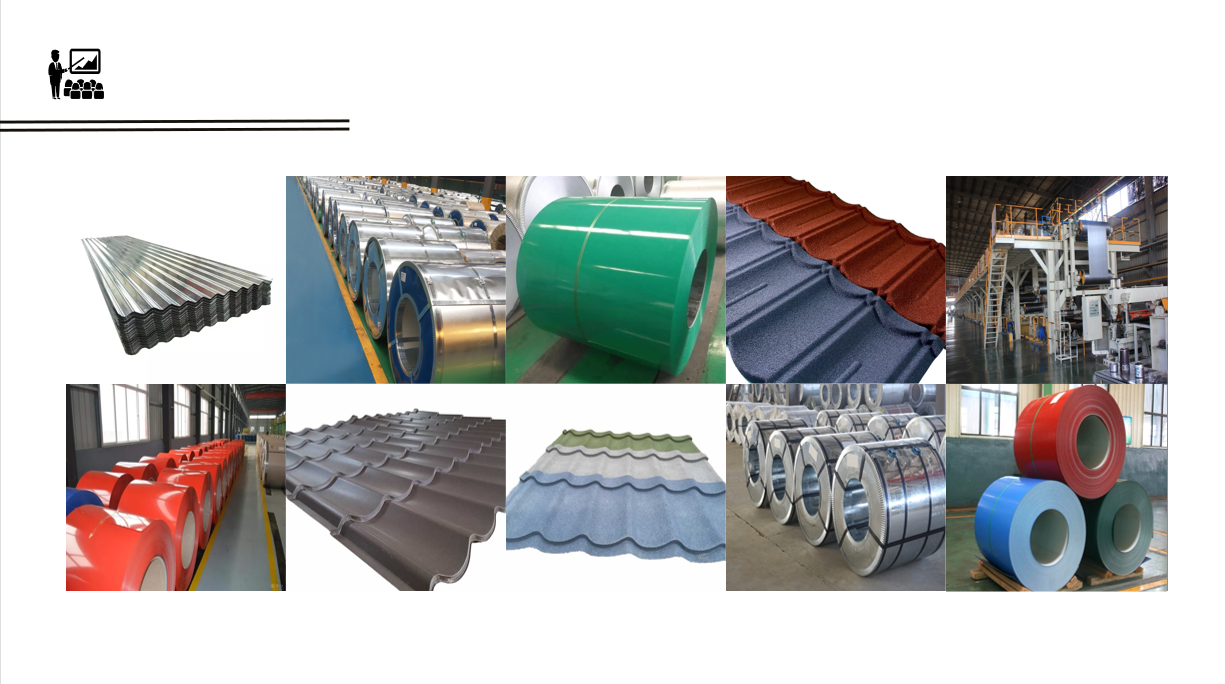

Application	Building industry ,Structural use, Roofing, Commercial use ,Household appliance, Industry facilities, Office buildings

PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc.

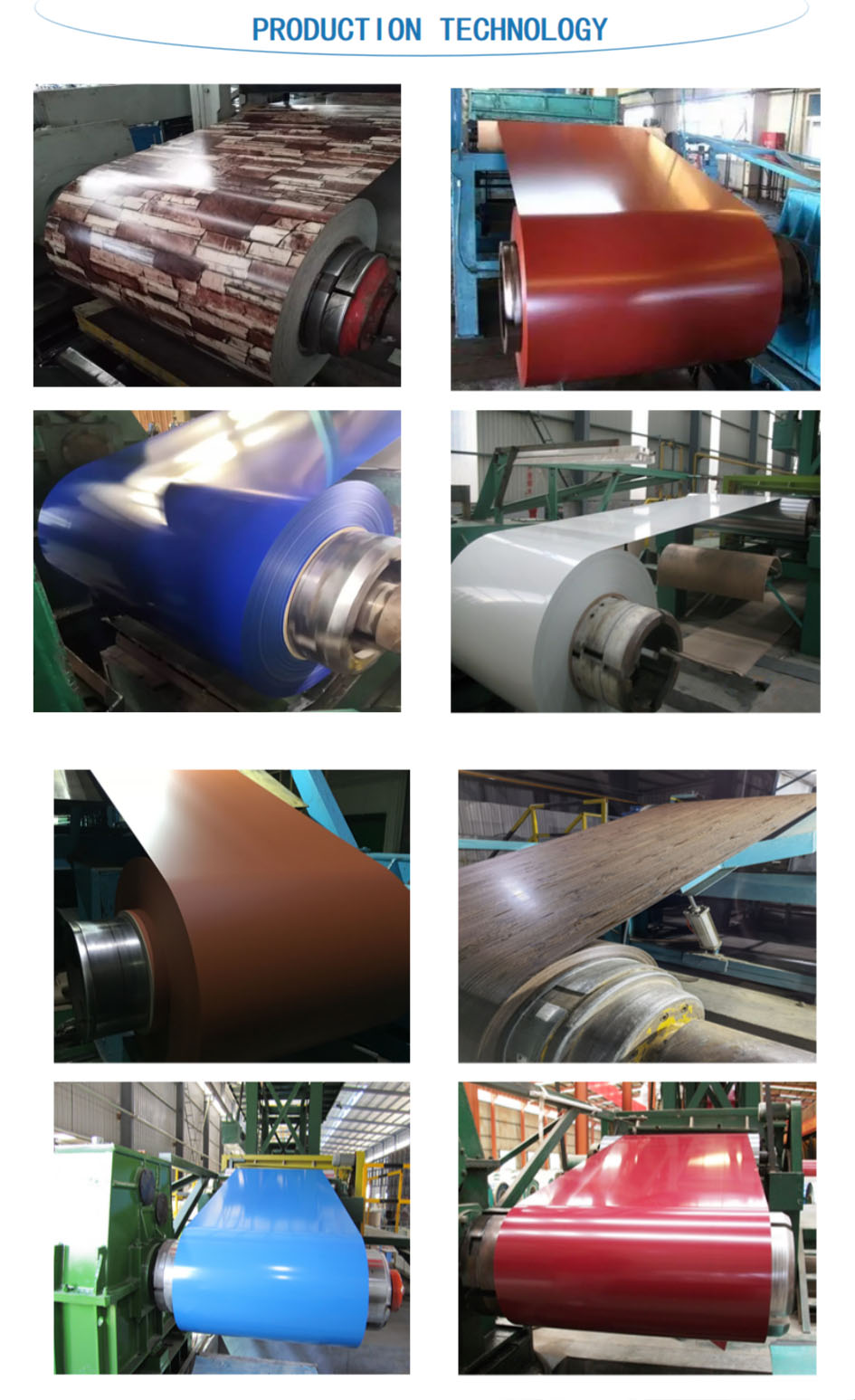

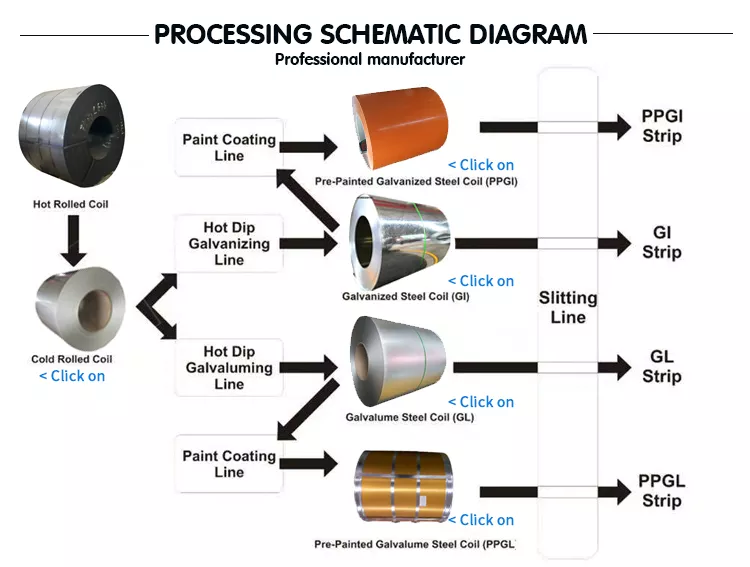

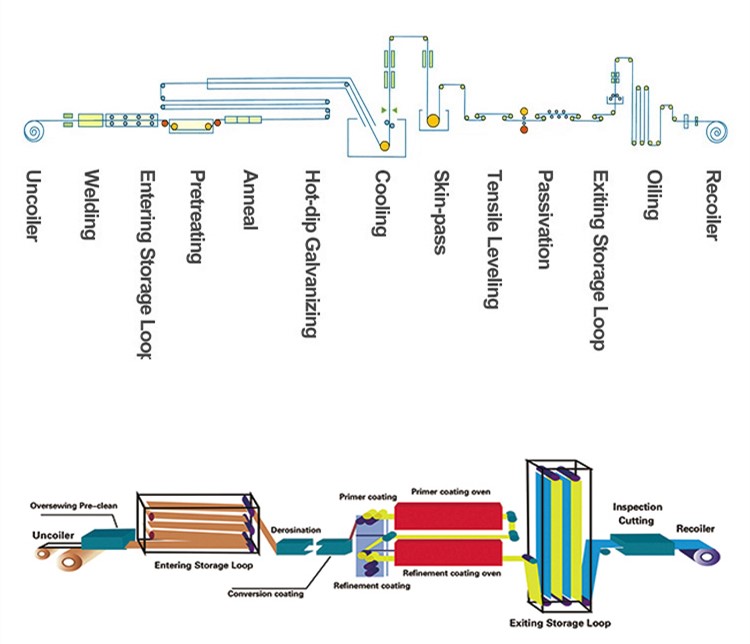

Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pretreatment, then the coatingof one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester,silicon modified polyester, high-durability, corrosion-resistance and formability.

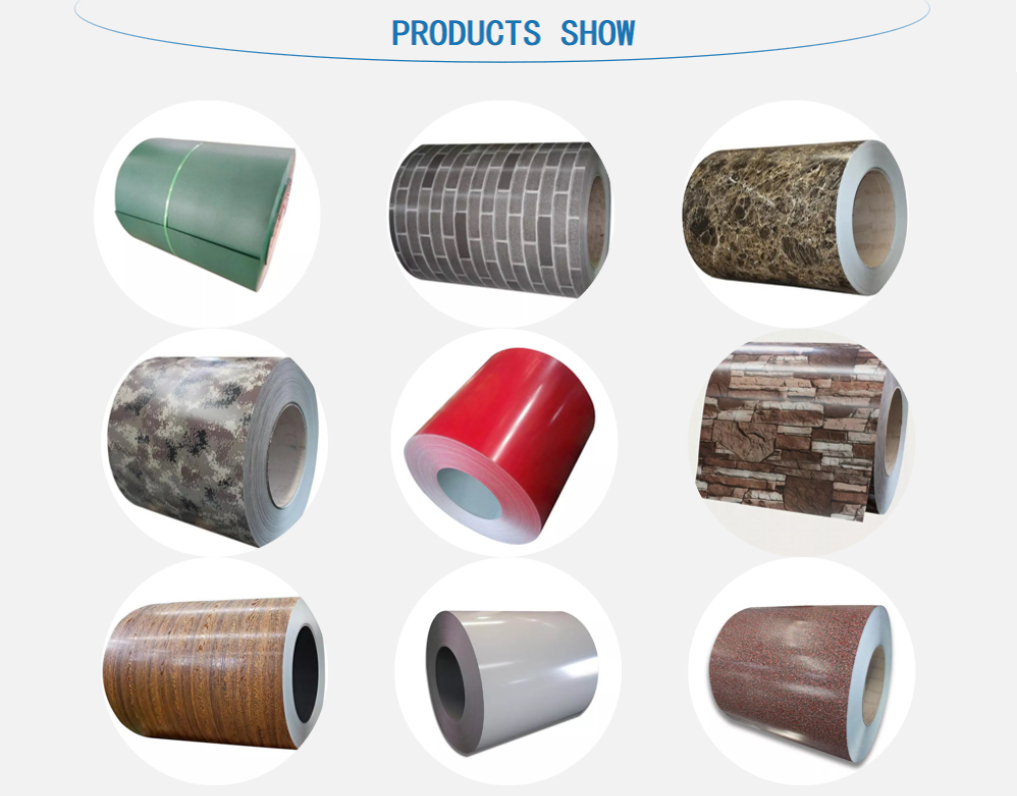

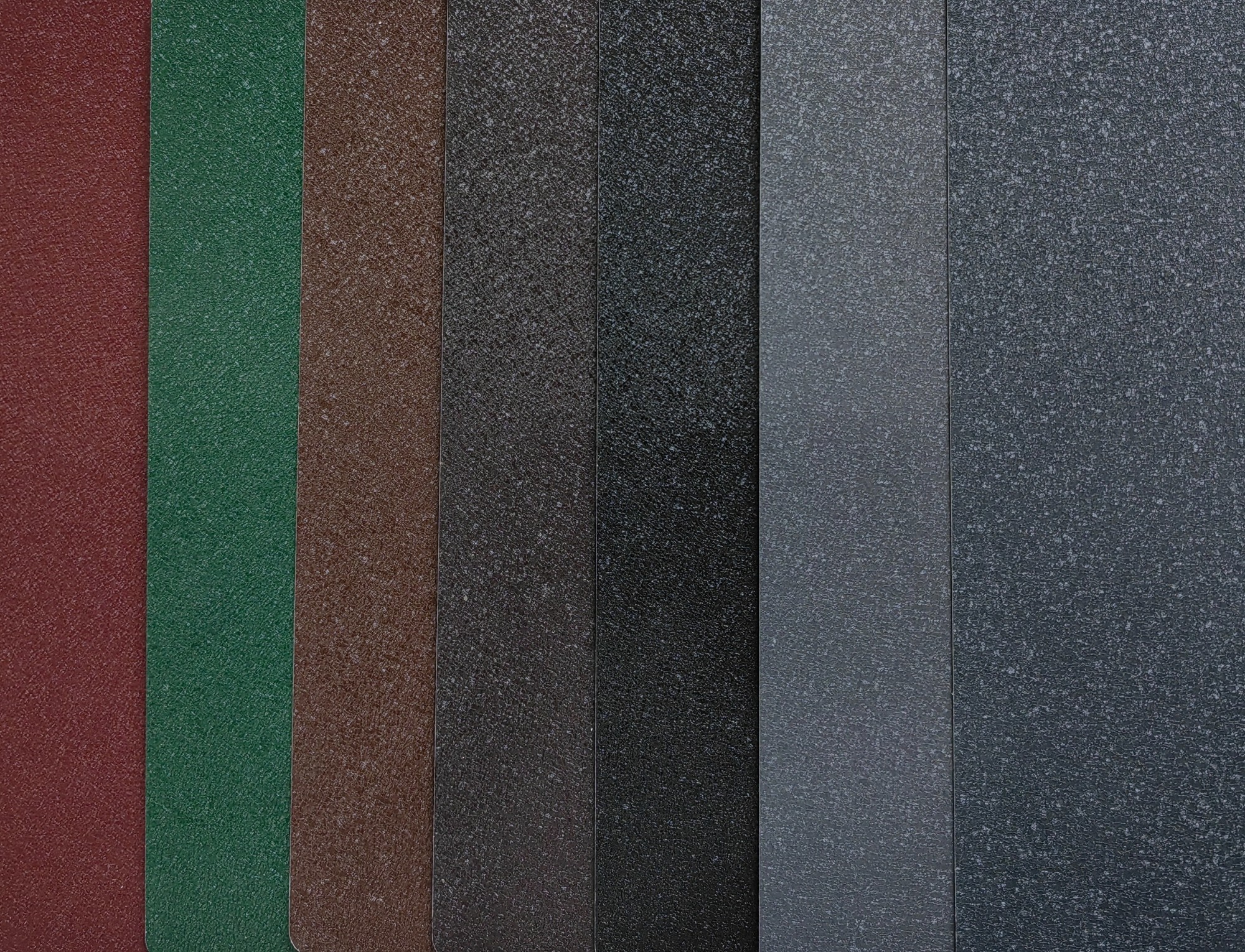

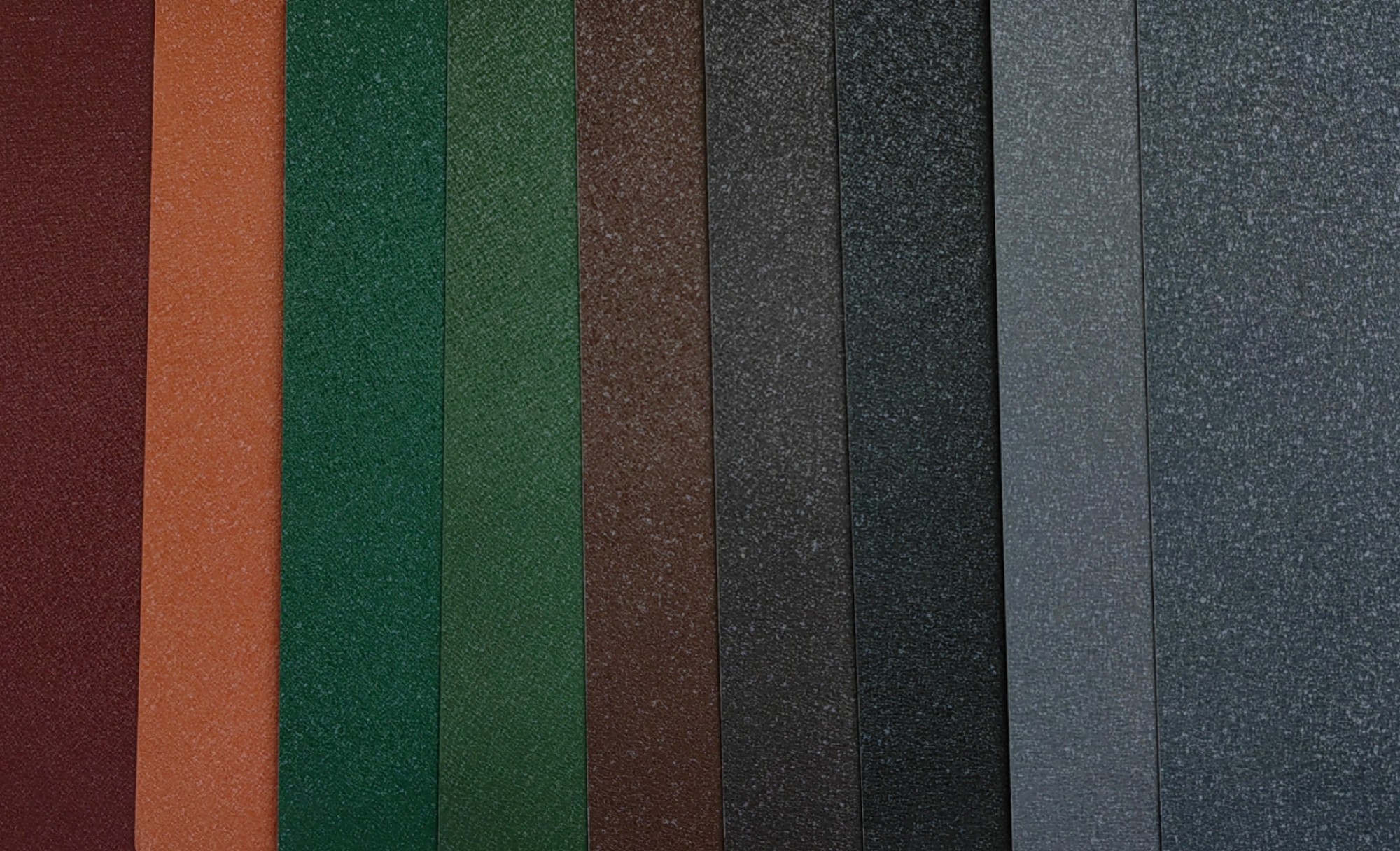

You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:
